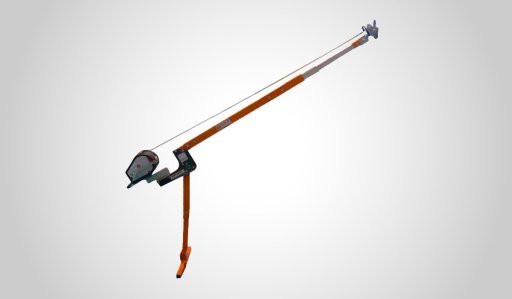

Product Details

Product Code 30040KIT
Conformance EN795 TYPE B | EN1496
Materials Mild Steel with CS-500 finish
Life Span 10 years
Service Various
Weight 14.96kg (excluding Winch)

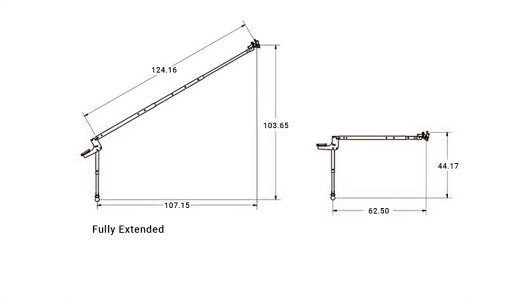

Dimensions L: 290cm | H: 112.19cm
Includes 30040 | 60005

Supporting Documents

Spec Sheet: Pole Hoist (30040) 0.24 MB

Kit Contents

product image

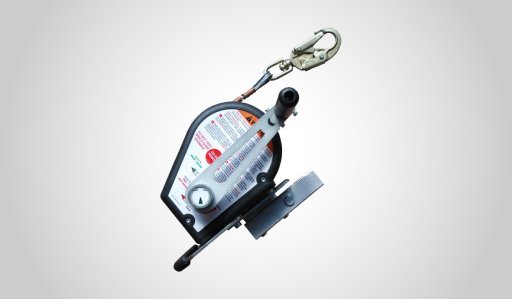

30M Personnel Winch

  • Multi-Tasker: Beyond confined spaces, this all-rounder is also perfect for work positioning, rescue, and even material handling within the prescribed load limits.
  • Precision Meets Power: With an 11:1 mechanical advantage and an average cranking force of just 30 lbs, the 30m Personnel Winch offers control and ease of use.
  • High Weight Capacity: Up to 280kg with a double-reeved system.
  • Rapid Stop Brake: Maximum stopping distance of 24".

Add Ons

product image

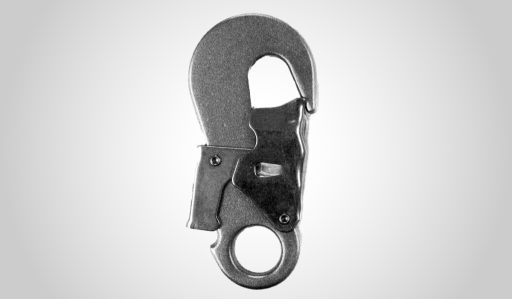

Small Snap Hook

  • Double Action: The double-action feature provides a fail-safe security layer.
  • Gate Opening: 19mm gate opening allows for quick and easy attachments.
  • Built Strong: 25kN breaking strength ensures this snap hook can withstand demanding conditions.
product image

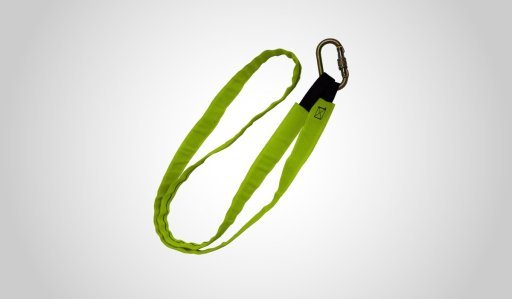

Hi Vis Anchor Sling

  • Hi Vis Material: Remain visible. Stand out and be seen in any environment.
  • Connector Included: Ships with K10SG Karabiner to make your setup a breeze.
  • Choose Your Length: Available in 1.0m (AB100HV), 1.5m (AB150HV), and 2.0m (AB200HV) lengths.


product image

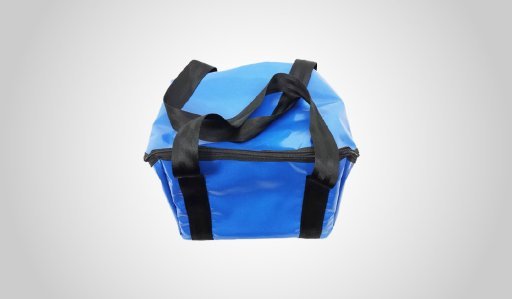

Winch Carry Bag with Wood Base

Winch devices are heavy-duty. Their carry bag should be too. This carry bag with solid base offers optimum protection.

  • Solid Base
  • Zip Closure
  • Internal Velcro Straps
