Drill Winch | DW3

Machinery Directive 2006/42/EC (Annex 4 Part 17)

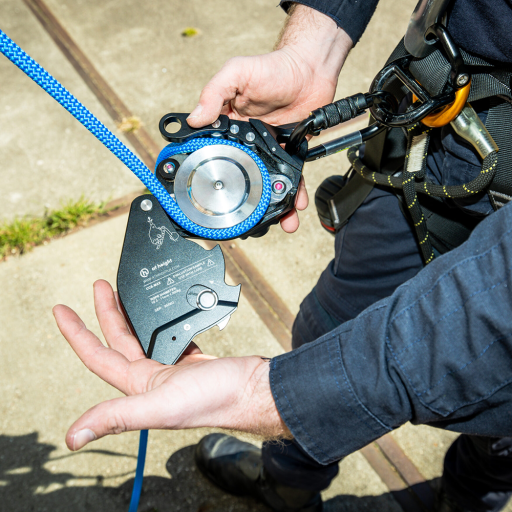

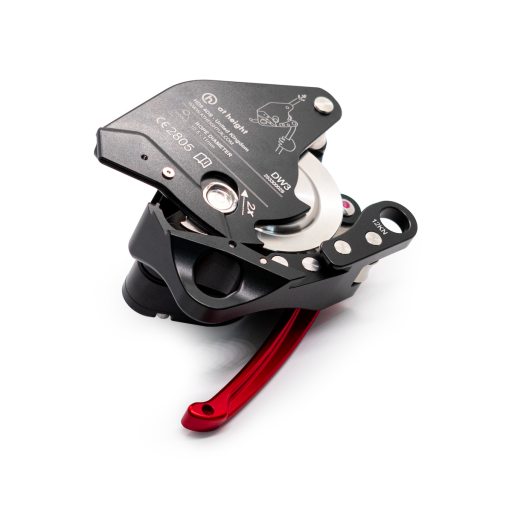

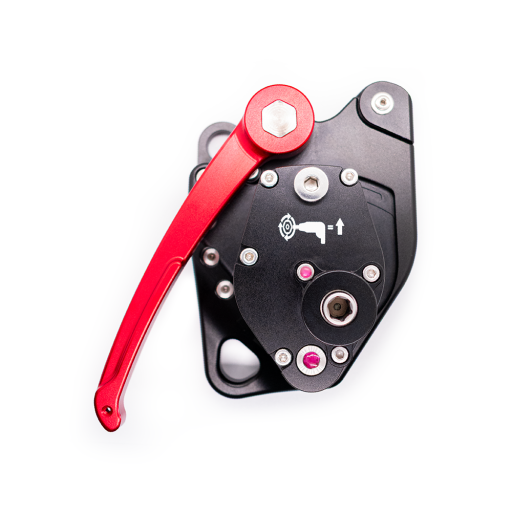

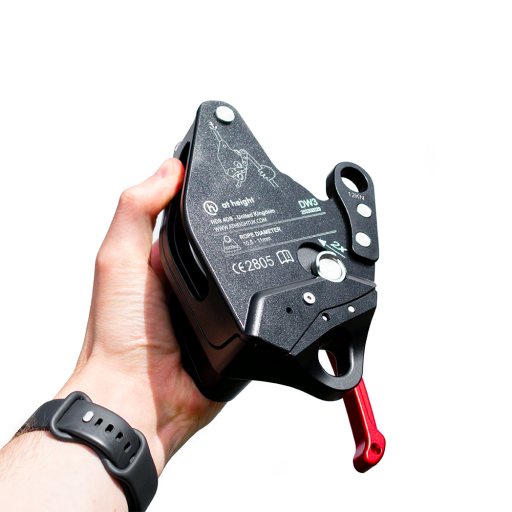

The DW3 Drill Winch by At Height is a portable lifting and lowering device designed for use across a wide range of applications, including confined space entry, work at height, rescue, and rigging. Controlled lifting is performed using a high-torque cordless drill (≥100 Nm), while lowering is managed manually via a friction-controlled release handle. The DW3 features an integrated progress capture pulley, built-in becket, and is compatible with 10.5 mm and 11 mm EN 1891 (Type A) rope. Weighing just 1.5 kg, this lightweight tool is suitable for use when anchored above or below the load — or even directly attached to the user’s harness for self-rescue scenarios.

• Lifts and Lowers Loads or Personnel: Maximum rated load of 200 kg for rope-based lifting operations.
• Drill-Operated Lifting: Controlled ascent using standard brushless drills (≥100 Nm, non-impact).
• Manual Lowering Function: Rope is released via an integrated handle with user-controlled descent.
• Integrated Safety Features: Includes a rope becket (12 kN MBS) and visual locking indicators.

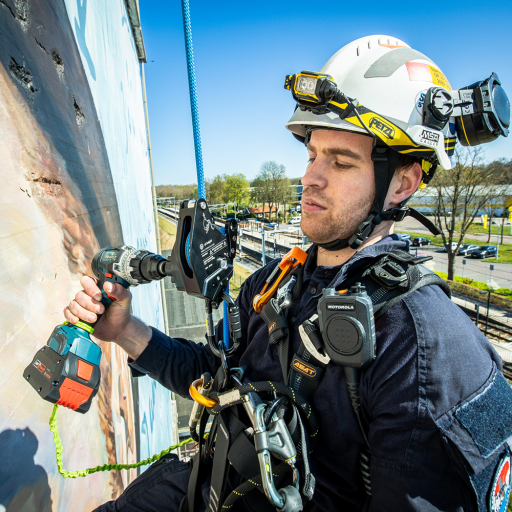

• Versatile Mounting: Can be anchored above, below, or worn on a harness for personal access or rescue.
