Vertical Work & Rescue System (15m) | VWR1
CE Marked, EN 12278, EN 1891-A

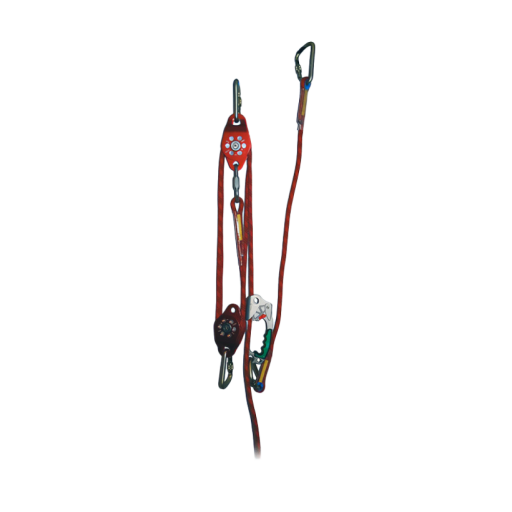

The Vertical Work & Rescue System (VWR1) is designed for both vertical work positioning and rescue scenarios. Featuring a pre-rigged pulley system with a 15m working length, it allows for controlled raising and lowering of personnel. All components are CE certified, ensuring compliance with safety standards.
- Pre-rigged pulley system for quick deployment.
- 15m working length suitable for various applications.
- CE certified components for assured safety compliance.
- Versatile use for both work positioning and rescue operations.
Product Details |
|
|---|---|
| Product Code | VWR1 |
| Conformance | Includes CE Products |
| Materials | Various |
| Life Span | 10 years |
| Service | 12 months |
| Length | 1m |
| Includes | LR/11/82 | ABMRBAG | RP700 | RP220 | GOZ07 | K40SGP | AB200HV |
Supporting Documents
Spec Sheet: Vertical Work & Rescue System (VWR1)
0.92 MB
Download
Kit Contents
11mm Static Rope (50m) | LR/11/50
EN 1891:1998 (Type A)
The 50m static rope offers high durability and minimal stretch, making it suitable for confined space entry, rescue, and work positioning tasks. Its 11mm diameter ensures compatibility with standard hardware.
- High abrasion resistance for extended service life.
- Low elongation under load enhances safety.
- Compatible with various rope access equipment.
- Lightweight at 75g per metre for ease of handling.
One-Way Locking Double Pulley | RP700
EN 12278
The RP700 is a robust double pulley featuring one-way locking bearings, allowing controlled lowering during rescue and hauling tasks. Designed for ropes ranging from 10 to 13mm in diameter, it ensures smooth operation and enhanced safety.
- One-way locking bearings for controlled descent.
- Compatible with 10–13mm diameter ropes.
- Minimum breaking strength of 30kN.
Professional Right Hand Ascender | RP220
EN 567, EN 12841, NFPA Compliant
The ISC RP220 is a durable right-hand ascender designed for professional use in rope access, rescue, and arborist applications. Machined from high-strength aluminium extrusion, it features a stainless steel cam with a coned design to minimise rope wear. The moulded comfort-grip handle ensures secure and comfortable operation during extended use.
- Compatible with 9–13mm diameter ropes.
- Stainless steel cam with coned design reduces rope abrasion.
- Primary and secondary attachment points for versatility.
- Ergonomic moulded handle for enhanced grip and comfort.
Oval Maillon | GOZ07
BS EN 362, BS EN 12275
The GOZ07 Oval Maillon is a robust connector crafted from zinc-plated steel, offering a 10mm gate opening and a minimum breaking strength of 25kN. Its compact design and high strength make it ideal for various applications requiring secure connections.
- Zinc-plated steel construction for corrosion resistance
- 10mm gate opening for versatile attachment
- 25kN minimum breaking strength ensures reliability
- Lightweight at 60 grams for ease of use
Klettersteig Screwgate | K40SGP
BS EN 362
The Abtech Klettersteig Screwgate Karabiner (K40SGP) is a robust connector designed for demanding industrial applications. Constructed from high-tensile steel, it features a screwgate locking mechanism and a generous 26mm gate opening, ensuring secure and reliable connections in various safety and rigging systems.
- Screwgate locking mechanism for enhanced safety
- 26mm gate opening accommodates various attachment points
- High breaking strength of 45kN ensures reliability
- Durable high-tensile steel construction for longevity
