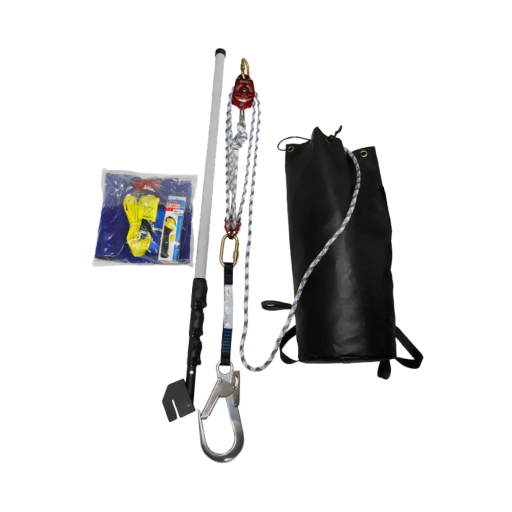

Vertical Rescue System | VRS
CE Marked, EN 1891-A, EN 12278
The Vertical Rescue System (VRS) is designed for the unassisted rescue of a suspended individual following a fall arrest. It enables the rescuer to either raise or lower the casualty to safety using a 4:1 mechanical advantage pulley system. The system includes a telescopic rescue pole for connecting to the casualty’s harness and features locking pulleys for controlled descent. Ideal for confined space and industrial applications, the VRS is a reliable solution for emergency rescues.
- 4:1 mechanical advantage for reduced effort during lifting.
- Locking pulleys provide controlled lowering of the casualty.
- Telescopic rescue pole facilitates connection to the casualty’s harness.
- Compatible with 11mm EN1891-A rope for durability and safety.
Product Details |
|
|---|---|
| Product Code | VRS |
| Conformance | Includes CE Products |
| Materials | Various |
| Life Span | 10 years |
| Service | 12 months |
| Length | 15m |
| Includes | CRP70 | GOZ07 | RP700 | K10SG | LR/11/80 |
Supporting Documents
Spec Sheet: Vertical Rescue System (VRS)
0.44 MB
Download
Kit Contents
11mm Static Rope (50m) | LR/11/50
EN 1891:1998 (Type A)
The 50m static rope offers high durability and minimal stretch, making it suitable for confined space entry, rescue, and work positioning tasks. Its 11mm diameter ensures compatibility with standard hardware.
- High abrasion resistance for extended service life.
- Low elongation under load enhances safety.
- Compatible with various rope access equipment.
- Lightweight at 75g per metre for ease of handling.
Canvas Rope Protector | CRP70
The CRP70 Canvas Rope Protector by Abtech Safety is engineered to safeguard ropes against abrasion when deployed over edges. Constructed from sturdy canvas, it features Velcro edges that allow the protector to form a tube around the rope, ensuring comprehensive protection. Integrated eyelets enable secure anchoring in position, enhancing stability during use.
- Velcro edges facilitate easy wrapping around ropes.
- Eyelets provide options for secure placement.
- Constructed from heavy-duty canvas for durability.
- Designed for use over edges to prevent rope wear.
Oval Maillon | GOZ07
BS EN 362, BS EN 12275
The GOZ07 Oval Maillon is a robust connector crafted from zinc-plated steel, offering a 10mm gate opening and a minimum breaking strength of 25kN. Its compact design and high strength make it ideal for various applications requiring secure connections.
- Zinc-plated steel construction for corrosion resistance
- 10mm gate opening for versatile attachment
- 25kN minimum breaking strength ensures reliability
- Lightweight at 60 grams for ease of use

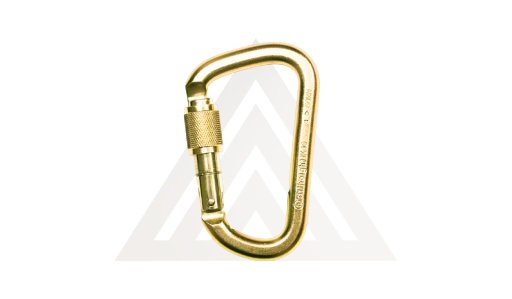

Klettersteig Screwgate | K40SGP
BS EN 362
The Abtech Klettersteig Screwgate Karabiner (K40SGP) is a robust connector designed for demanding industrial applications. Constructed from high-tensile steel, it features a screwgate locking mechanism and a generous 26mm gate opening, ensuring secure and reliable connections in various safety and rigging systems.
- Screwgate locking mechanism for enhanced safety
- 26mm gate opening accommodates various attachment points
- High breaking strength of 45kN ensures reliability
- Durable high-tensile steel construction for longevity
One-Way Locking Double Pulley | RP700
EN 12278
The RP700 is a robust double pulley featuring one-way locking bearings, allowing controlled lowering during rescue and hauling tasks. Designed for ropes ranging from 10 to 13mm in diameter, it ensures smooth operation and enhanced safety.
- One-way locking bearings for controlled descent.
- Compatible with 10–13mm diameter ropes.
- Minimum breaking strength of 30kN.
