Pole Hoist Davit Kit | 30040KIT
EN 795:2012 Type B, EN 1496

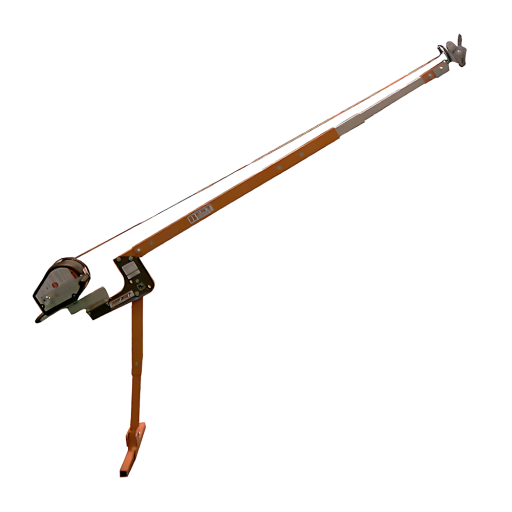

The 30040KIT features Tuff Built’s telescoping pole hoist, ideal for horizontal confined space entry where vertical extraction is required. With its adjustable boom, the system is compact, portable, and engineered for personnel lifting and rescue when used with approved winch equipment.

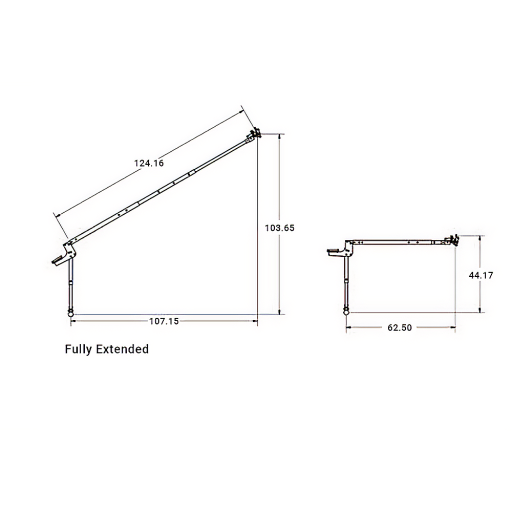

- Adjustable reach: 1.52m to 3.05m
- Horizontal-to-vertical entry rescue capability
- Compact and portable configuration
- Suitable for edge or tank collar anchoring
Product Details |
|
|---|---|
| Product Code | 30040KIT |
| Conformance | EN795 TYPE B | EN1496 |
| Materials | Mild Steel with CS-500 finish |
| Life Span | 10 years |
| Service | Various |
| Weight | 14.96kg (excluding Winch) |
| Dimensions | L: 290cm | H: 112.19cm |
| Includes | 30040 | 60005 |
Supporting Documents
Spec Sheet: Pole Hoist (30040)
0.24 MB
Download
Kit Contents
TUFF Personnel Winch, 30m | 60005
EN 795, EN 1496
The TUFF Personnel Winch (60005) is engineered to provide dependable lifting and lowering capabilities for personnel in various working-at-height scenarios. With a 30-metre galvanised steel rope and an 11:1 mechanical advantage, this winch ensures controlled and effortless operation. Its robust design accommodates a maximum load of 280kg when used with a double-reeved system, making it suitable for both personnel and material handling within prescribed limits. The integrated rapid stop brake offers a maximum stopping distance of 610mm, enhancing safety during operations. Compatible with Abtech Safety’s T3 and RT3 tripods via the T05TW2 bracket, the 60005 winch is ideal for confined space entry, rescue missions, and industrial maintenance tasks.
- 30m galvanised steel rope for extended reach
- 11:1 mechanical advantage for efficient operation
- Maximum load capacity of 280kg with double-reeved system
- Rapid stop brake with a maximum stopping distance of 610mm
- Compatible with T3 and RT3 tripods using T05TW2 bracket
Add Ons
Adjustable Restraint Lanyard | ABRSTADJ
BS EN 358
The Abtech Safety ABRSTADJ is a durable, adjustable restraint lanyard constructed from high-strength webbing. It adjusts between 1.25m and 1.75m, allowing users to limit their movement and prevent access to hazardous areas. Supplied with two screwgate karabiners, it’s ideal for work positioning tasks where fall arrest is not required.
- Adjustable length from 1.25m to 1.75m
- High-strength webbing construction
- Fitted with two screwgate karabiners
- Suitable for work positioning and restraint applications
CRESTO Core Active Rescue | 1154R
EN 361:2002, EN 1497:2007
The CRESTO Core Active Rescue 1154R is a full-body harness equipped with front and rear D-rings, as well as an additional dorsal rescue D-ring certified under EN 1497:2007. This makes it suitable for both fall arrest and rescue scenarios, particularly in confined spaces. Constructed with NordGuard™ polyester webbing, the harness offers durability and resistance to contaminants. Manual steel buckles on the chest and legs ensure a secure and comfortable fit.
- Triple Attachment Points: Front, rear, and rescue D-rings for comprehensive safety.
- Rescue D-Ring: Certified under EN 1497:2007 for rescue operations.
- Durable Webbing: NordGuard™ polyester for enhanced strength and longevity.
- Manual Buckles: Steel buckles on chest and leg straps for secure fitting.
- One-Size Design: Accommodates a wide range of body sizes.
Winch Carry Bag, Wood Base | WINCHBAG
Heavy-duty carry bag with solid wood base, zip closure, and internal Velcro straps for secure transport of winch devices.
The Abtech Winch Carry Bag is designed for the safe storage and transportation of winch devices. Featuring a robust construction with a solid wood base, it ensures protection against impacts. The bag includes a secure zip closure and internal Velcro straps to keep equipment firmly in place during transit.
- Solid wood base for enhanced durability
- Secure zip closure to protect contents
- Internal Velcro straps to secure equipment
- Durable construction for daily use
